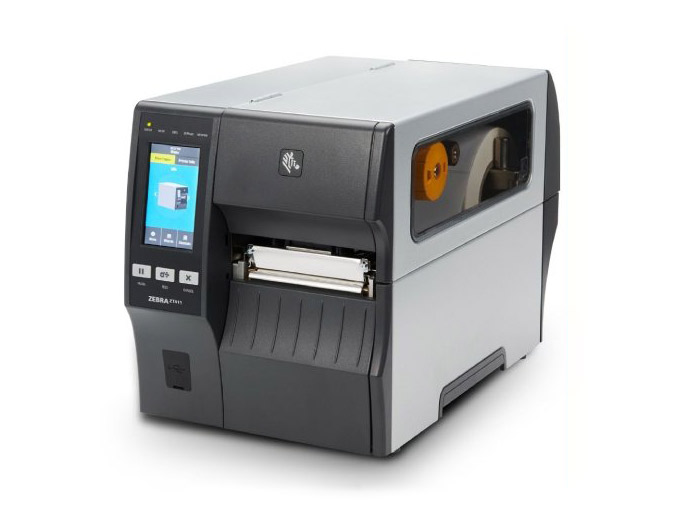

How to Maintain Zebra ZT411 and ZT421 Printers — Printhead & Roller Cleaning Tips

Keeping your Zebra ZT411 and ZT421 industrial printers in top condition requires regular cleaning—especially of the printhead and platen roller. Over time, dust, adhesive, and ribbon residue can build up on these components, leading to print quality issues, barcode scanning errors, or even damage to the printer. In this guide, we’ll walk you through how to properly clean the printhead and platen roller to maintain peak performance and extend the life of your printer.

Why Cleaning Is Important

Regular cleaning prevents poor print quality such as streaks, voids, or blurred text. It also helps:

• Reduce printer downtime
• Extend the life of the printhead and platen roller
• Maintain consistent barcode readability
• Prevent label misalignment or feeding errors

For best results, Zebra recommends cleaning your printer after every ribbon or label roll change—or at least once per day during heavy usage.

Materials You’ll Need

Before starting, prepare the following cleaning tools:

• IPA (Isopropyl Alcohol) Cleaning Swabs or Wipes (99% IPA recommended)
• Lint-Free Cloths
• Printhead Cleaning Pens
• Compressed Air (optional)

How to Clean the Printhead

1. Turn Off the Printer
   Always power off the printer and disconnect it from the power source before cleaning. This ensures safety and prevents static damage.
2. Open the Printhead Assembly
   Lift the printhead mechanism to expose the printhead surface.
3. Clean the Printhead Surface
   • Gently wipe the printhead with an IPA-saturated cleaning swab or pen.
   • Move the swab in one direction—do not scrub back and forth.
   • If residue persists, repeat with a fresh swab.
4. Dry the Printhead
   Allow the printhead to air-dry for a few seconds before closing the mechanism. Do not blow on it or use compressed air directly.

How to Clean the Platen Roller

1. Remove Labels and Ribbons
   Remove any media or ribbons from the printer to access the platen roller.
2. Inspect the Roller
   Check for adhesive buildup, paper dust, or scratches.
3. Wipe with IPA Swab or Lint-Free Cloth
   • Use an IPA-saturated swab or lint-free cloth to clean the roller while slowly rotating it by hand.
   • Clean the entire roller surface evenly.
4. Let It Dry
   Wait for at least 1–2 minutes until the roller is fully dry before resuming printing.

Additional Tips for Best Results

• Use only approved cleaning materials to avoid damage.
• Avoid touching the printhead surface with bare hands. Oils from your skin can affect print quality.
• Schedule cleaning regularly based on your printing volume.
• If you notice persistent streaks or blank spots, inspect your media path for debris.

Extend the Life of Your Zebra Printer with Proper Maintenance

Regular cleaning of your Zebra ZT411 and ZT421 printers ensures consistent print quality, reduces downtime, and prevents costly repairs. For optimal performance, use trusted cleaning supplies such as MediTech Printhead Cleaning Pens and IPA Cleaning Swabs, designed for safe and effective maintenance of thermal printer components.
